Sand Filter Nozzle Selection

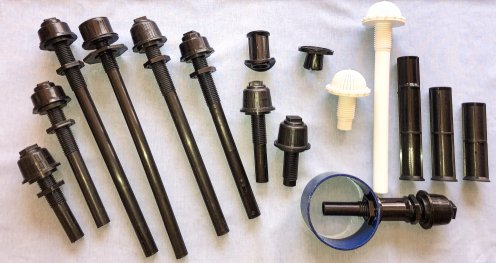

Nozzle general

Gingoni Sand Filter Nozzle Selection

The following sand filter nozzles are available from Gingoni which can be used in either old Biwater, Botjheng or Ames Crosta plants, or used in new Gingoni supplied floors.

Click to download Nozzle selection options data

GINGONI NOZZLE SELECTION (PDF - 9.87 MB)
TYPE NOZZLE STEM LENGTH NOZZLE CAP OPTIONS FILTER FLOOR TYPE PICTURE EXAMPLE
BW 50 mm Screwed on Annular orifice OR
0.5 mm Slotted caps		 Steel false floor
Item 1-BW 50 mm
BW 110 mm Screwed on Annular orifice OR
0.5 mm Slotted cap		 Exposed laterals OR
steel false floor
Item 2-BW 110 mm
BW 150 mm Screwed on Annular orifice OR
0.5mm Slotted cap		 50mm Submerged
lateral floor
Item 3-BW 150 mm
BW 200 mm Screwed on Annular orifice OR
0.5 mm Slotted cap		 125mm Concrete pre-cast
false or monolithic floor
Item 4-BW 200 mm
BW 270 mm Screwed on Annular orifice OR
0.5 mm Slotted cap		 150 mm Concrete pre-cast
false or monolithic floor
Item 5-BW 270 mm
BW 320 mm Screwed on Annular orifice OR
0.5 mm Slotted cap		 200 mm Concrete pre-cast
false or monolithic floor
Item 6-BW 320 mm
BW 365 mm Screwed on Annular orifice OR
0.5 mm Slotted cap		 200 mm Concrete pre-cast
false or monolithic floor
Item 7-BW 365 mm
BH 365 mm 0.3 mm Slotted cap ONLY 200 mm Concrete false floor
Item 8-BH 365 mm
AC 60 mm 0.5 mm Slotted cap ONLY Steel false floor with pre-thread
Item 9-AC 60 mm
AC 275 mm 0.5 mm Slotted cap ONLY 150 mm Concrete false floor
Item 10-AC 275 mm
BWT 270 mm FIXED SLOTTED CAP BATEMAN TYPE FALSE FLOOR
Item 11-BWT 270
